Description

The MAG544w3 TV Box has the following features:

• 𝐒𝐓𝐔𝐍𝐍𝐈𝐍𝐆 𝟒𝐊 𝐇𝐃𝐑 𝐕𝐈𝐃𝐄𝐎 𝐀𝐓 𝟔𝟎 𝐅𝐏𝐒: The MAG544w3 set-top box offers stunning visuals, supports AV1 and HEVC codecs, and streams 4K content with ease, requiring only 16 Mbps compared to H.264’s 32 Mbps.
• 𝐔𝐍𝐋𝐄𝐀𝐒𝐇 𝐇𝐈𝐆𝐇-𝐏𝐄𝐑𝐅𝐎𝐑𝐌𝐀𝐍𝐂𝐄 𝐏𝐎𝐖𝐄𝐑: The advanced Amlogic S905Y4-B chipset and quad-core ARM Cortex-A35 CPU in the MAG544w3 provide lightning-fast UI responsiveness and smooth content playing, improving enjoyment.
• 𝐒𝐄𝐀𝐌𝐋𝐄𝐒𝐒 𝐂𝐎𝐍𝐍𝐄𝐂𝐓𝐈𝐕𝐈𝐓𝐘 𝐎𝐏𝐓𝐈𝐎𝐍𝐒: The MAG544w3 offers a 100 Mbps Ethernet port and a built-in Wi-Fi module, providing fast wireless speeds of up to 550 Mbps on the 5 GHz band and 100 Mbps on the 2.4 GHz band.
• 𝐈𝐌𝐌𝐄𝐑𝐒𝐈𝐕𝐄 𝐀𝐔𝐃𝐈𝐎 𝐄𝐗𝐏𝐄𝐑𝐈𝐄𝐍𝐂𝐄: With Dolby Digital Plus surround sound compatibility, you can connect up to seven speakers and a subwoofer for a rich, immersive viewing experience.

Dimensions:

Width/Depth/Height (mm): 115 x 115 x 28
Weight (g): 170

Hardware for MAG TV Box:

Chipset: Amlogic S905Y4-B
Processor: Quad-core ARM Cortex-A35, 2,000 MHz
Performance: 16 500 DMIPS
RAM: 1 GB DDR4
Flash Memory: 4 GB eMMC

Software for MAG TV Box:

Operating System: Linux 4.9
Middleware Supported: Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a complete replacement is available

Interfaces:

HDMI 2.1, Ethernet 100 Mbps, 1 × USB 3.0, 1 × USB 2.0, built-in 2T2R ac Wi-Fi module

Sources of Media Content:

PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices

Audio & Video:

Audio Codecs: MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus
Audio Formats: AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Video Modes: PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Video Codecs: MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video Containers: TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image Formats: JPEG, PNG, BMP, RAW
Subtitles: DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVTT, closed captions
Playlist Formats: M3U, M3U8, PLS, CUE

Standard Set:

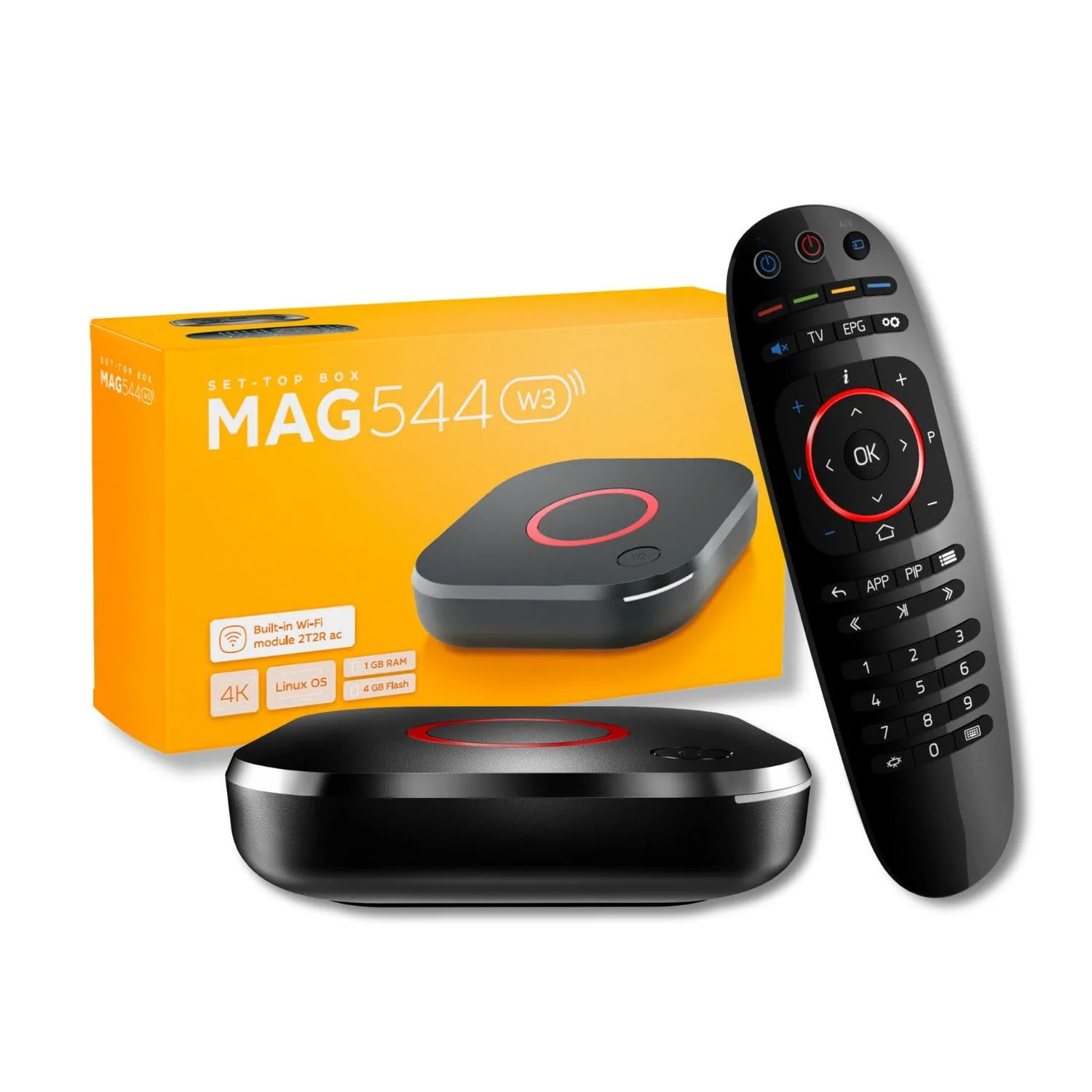

1 x MAG 544w3 Set-Top Box
1 x User Manual
1 x HDMI cable
1 x Power adapter 12V, 1A
1 x Remote control
2 x AAA batteries
